Class 2 ASTM Switchboard Diamond Surface Insulating Mat

Class 2 ASTM Switchboard Diamond Surface Insulating Mat

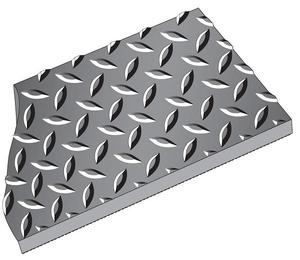

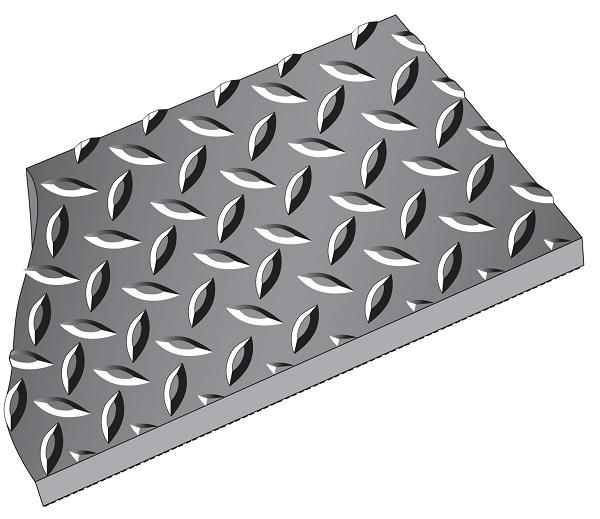

  • A specially compounded non-conductive diamond surface mat designed to help prenent electric shock around high voltage electrical equipment.
  • Meets all optional requirements for Ozone Resistance, Flame Resistance and Oil Resistance.
  • Tested to ASTM D178/ANSI J6.7.   Certification Engraved on Back of Mat
  • Dielectric Test Voltage 30,000 VAC. Proof tested over entire surface at 20,000 VAC.
  • Recommended maximum use voltage 17,000 VAC.
  • Use around fuse boxes, control panels, elevator rooms and transformers.
  • Immediately STOP using damaged mats. We recommend replacing every year for maximum safety.
  • 1 (One) YEAR WARRANTY

Standard Sizes (Approximate) - Thickness x Width x Length in Inches
Size Qty. 1-2 Qty. 3-6 Qty. 7-100
24 x 36 $69.50 $64.50 $59.50
36 x 60 $120.25 $114.25 $104.25
36 x 120 $191.00 $188.50 $179.50
36 x 144 $220.00 $215.50 $210.25
48 x 72 $199.50 $198.50 $196.00

Custom Sizes - Per Linear Foot - Thickness x Width x Length in Inches
Size Qty. 1-100
1/4 x 24 $29.75
1/4 x 36 $34.75
1/4 x 48 $42.60
